SPACE SAVING - HIGH PERFORMANCE - FLEXIBILITY

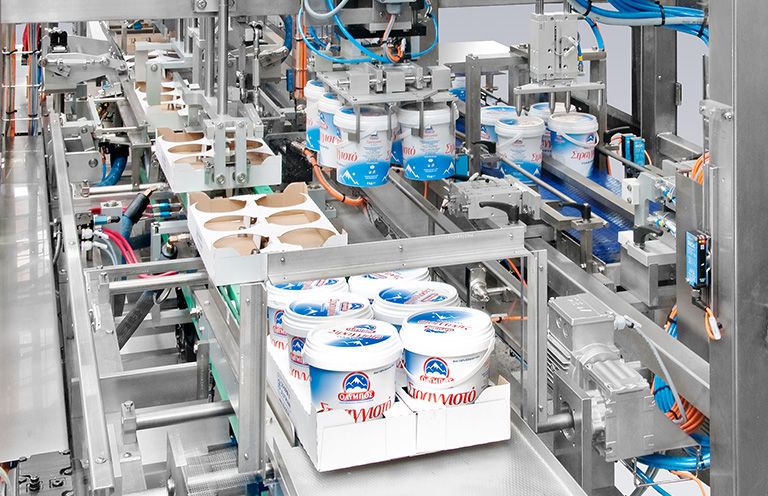

Lack of space – one of the most commonly encountered problems in production plants. And this is precisely where the most recent generation of the Schäfer & Flottmann Combi-Packer comes into focus. An erecting machine for standard trays or intersection trays directly combined with a case packer. We are not talking about two machines here, but about a single compact unit. Our concept: an integrated unit with a direct product infeed (example: for cups coming from the pocket slats of the primary packaging machine) or as a stand-alone machine installed outside the production area with a product infeed via a conveyor system. But still built in a stable and robust way with optimum accessibility for easy operation.

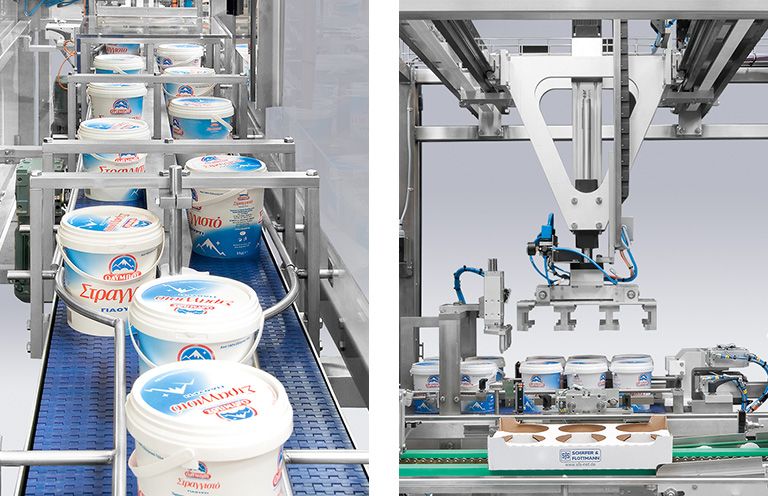

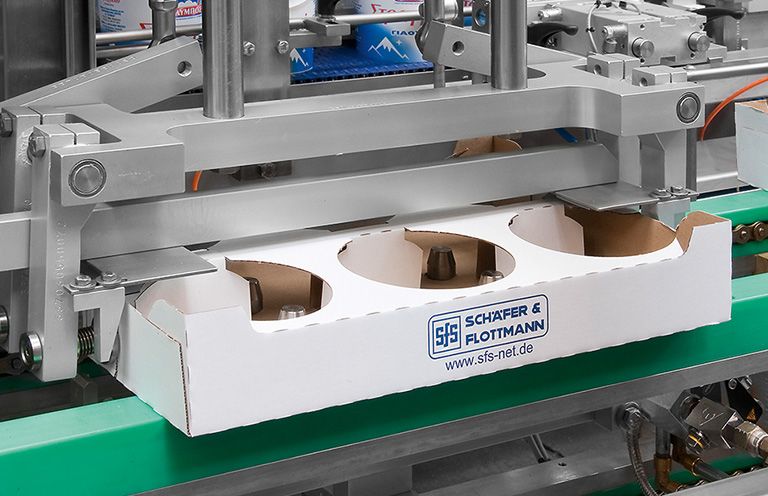

A safe and careful handling of the product is ensured by the mechanical grippers of the integrated pick-and-place module. The module is designed as a single or double head system according to the output required. On request, the machines can be equipped completely with servo drives in order to correspond to the maximum capacity requirements. The modular construction provides for either an economical single format machine or multi-format flexible equipment. The Combi-Packer can be used without extra cost as a „Solo Tray-Erector“, producing up to 60 trays per minute for use on auxiliary equipment.
We will be pleased to supply you with further information about our products.
Download data sheets and leaflets here. Have a look at the video showing the functional principle. Or feel free to get in personal contact with our team by sending an e-Mail to email@example.com
These contents are available only after log-in. Please log-in with username and password. If you wish to register please send a short e-Mail to firstname.lastname@example.org
Benefits at a glance
- For open trays, also with upper flaps or corner reinforcement
- For intersection trays, with and without stacking corners
- Tray sizes up to 400 x 300 mm
- For different tray heights
- On request, format flexibility ensured by forming tools
- Rapid and easy format change
- From micro flute to double corrugated carton
- High outputs up to 60 trays per minute
- Completely servo driven for high output performances
